Connector Reference Chart

Connector Assemblies

Harness Options
strip%20tin.JPG blunt.jpg weld%20discs.jpg tabs.jpg thermistor6.jpg
Strip and tinned Blunt cut Weld discs Tabs Thermistors
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca003.jpg CA003 Red 22 3.75" Black 22 3.75" Stripped and tinned to 0.187"
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca005.jpg CA005 Red 22 4.00" Black 22 4.00" Stripped and tinned to 0.187"
CA005/D Red 24 2.75" Black 24 6.50" Stripped and tinned to 0.187"
CA005-4 Red 24 2.75 Black 24 5.50" Stripped and tinned to 0.100"
CA005F-1 Red 24 9.00" Black 24 6.75" Stripped and tinned to 0.187"
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
CA005-2.jpg CA005-2 Red 24 6.80" Black 24 5.75" Strip and tinned to 0.110"
CA005-3 Red 24 11.00" Black 24 11.00" Blunt cut
CA005/F Red 24 6.75" Black 24 10.00" Stripped and tinned to 0.187"
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
CA008A.jpg CA008A Red 16 10.00" Blue 16 10.00" Blunt cut.
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca014.jpg CA013 Red 24 6.00" Black 24 6.00" Stripped and tinned to 0.200"
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca014.jpg CA014 Red 24 12.00" Black 24 12.00" Stripped and tinned to 0.187"
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca017.jpg CA017 Red 26 Black 26 00" Stripped and tinned to 0.187"
CA017-1 Red 26 1.50" Black 26 1.50" Stripped and tinned to 0.100"
CA017-3A Red 28 4.00" Green 28 4.00" Weld discs
CA017-4R Red 26 4.00" Black 26 4.00" Tabs
CA017-5R Red 26 2.875" Black 26 2.875" Tabs
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
CA017-2.jpg CA017-2 Red 26 4.00" Black 26 4.00" Stripped and tinned to 0.100"
CA017-3 Red 26 4.00" Black 26 4.00" Weld discs
CA017-4 Red 26 4.00" Black 26 4.00" Tabs
CA017-5 Red 26 2.875" Black 26 2.875" Tabs
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
CA018-1.jpg CA018-1 Red 24 12.00" Black 24 12.00" Blunt cut
CA018-3 Red 24 3.125" Black 24 4.80" Weld discs
CA018-5 Red 24 9.625" Black 24 11.125" Weld discs
CA018-6 Red 24 8.625" Black 24 10.125" Weld discs
CA018C Red 24 10.50" Black 24 8.75" Stripped and tinned to 0.100"
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
CA018-2.jpg CA018-2 Red 22 12.00" Black 22 12.00" Blunt cut.
CA018-4 Red 22 2.50" Black 22 5.50" strip and tin
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca023.jpg CA023 Red 22 4.00" Black 22 4.00" Stripped and tinned to 0.187"
CA023-5 Red 24 4.00" Black 24 4.00" Weld discs
CA023B Red 22 1.80" Black 22 3.78" Stripped and tinned to 0.187"
CA023B-1 Red 24 1.80 Black 24 3.78" Weld discs
CA023B-2 Red 24 1.00" Black 24 3.625" Weld discs
CA023D Red 22 15.50" Black 22 15.50" Stripped and tinned to 0.250"
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca024.jpg CA024-1 Red 22 15.00" Black 22 15.00" Blunt cut.
CA024-2 Red 22 8.00" Black 22 8.00" Blunt cut.
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
CA-024-2B.jpg CA024-2B Red 22 8.00" Black 22 8.00" Strip and tinned to 0.125"
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca025.jpg CA025 Red 24 12.00" Black 24 12.00" Blunt cut
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
CA025-1.jpg CA025-1 Red 24 8.00" Black 24 8.00" Strip and tinned to 0.187"
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca029.jpg CA029 Red 22 8.00" Black 22 8.00" Blunt Cut
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca038.jpg CA038 Red 22 12.00" Black 22 12.00" Strip and tinned to 0.187"
CA038-1 Red 22 15.00" Black 22 15.00" Blunt cut
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
CA038-2.jpg CA038-2 Red 22 8.00" Black 22 8.00" Blunt cut
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
CA038B-3A.JPG CA038B-1 Red 22 4.00" Black 22 4.00" Strip and tinned to 0.187"
CA038B-2 Red 22 8.00" Black 22 8.00" Blunt cut
CA038B-3A Red 22 15.00" Black 22 15.00" Blunt cut
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca038b-4.jpg CA038B-4 Red 22 3.50" Black 22 7.00" Strip and tinned to 0.156"
CA038B-2B Red 22 8.00" Black 22 8.00" Blunt cut
CA038B-3B Red 22 15.00" Black 22 15.00" Blunt cut
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca-0066.jpg CA043 Red 22 6.00 Black 22 6.00 Blunt Cut
CA043-1 Red 22 12.00 Black 22 12.00 Blunt Cut
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
Ca055.jpg CA055 Red 22 9.00" Black 22 9.00" Blunt cut.
CA055-12A Red 18 12.00" Black 18 12.00" Blunt cut.
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
CA055-2.jpg CA055-12B Red 18 12.00" Black 18 12.00 Blunt cut.
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca057.jpg CA057 Red 22 6.00" Black 22 6.00" Strip and tinned to 0.200"
CA057-3 Red 22 12.00" Black 22 12.00" Blunt cut
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca057-2a.jpg CA057-2 Red 22 8.00" Black 22 8.00" Strip and tinned to 0.200"
CA057-2A Red 22 12.00" Black 22 12.00" Blunt cut
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca076a.jpg CA076A-1 Red 24 8.00" Black 24 8.00" Weld disc
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca080.jpg CA080 Red 26 6.00" Black 26 6.00" Strip and tinned to 0.187"
CA080A Red 26 4.125" Black 26 3.375" Strip and tinned to 0.187"
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca084a.jpg CA084A Red 26 6.25" Black 26 6.25" Blunt cut
CA084A-1 Red 24 8.50" Black 24 6.85" Strip and tinned to 0.110"
CA084A-2 Red 24 10.00" Black 24 10.00" Strip and tinned to 0.110"
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
CA084.jpg CA084 Red 26 4.33" Black 26 4.33" Strip and tinned to 0.110"
CA084-1 Red 26 6.25" Black 26 6.25" Strip and tinned to 0.110"
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca111.jpg CA111A Red 22 12.00" Black 22 12.00" female terminals Stripped
CA111A-1 Red 16 12.00" Black 16 12.00" female terminals blunt cut
CA111A-2 Red 20 4.50" Black 20 6.77" male terminals blunt cut
CA111A-3 Red 20 9.50" Black 20 14.00" female terminals blunt cut
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
CA111B.jpg CA111B Red 22 12.00" Black 22 12.00" female terminals Stripped
CA111B-1 Red 18 12.00" Black 18 12.00" female terminals blunt cut
CA111B-2 Red 18 6.00" Black 18 6.00" female terminals Stripped
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca117.jpg CA117 Red 24 2.625" Black 24 4.25" Blunt cut.
CA117-1 Red 24 2.625" Black 24 4.25" Weld discs.
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
CA121.jpg CA121 Red 26 2.625" Black 26 4.25" stock stripped and tinned
CA121-1 Red 26 3.145" Black 26 5.11" stock stripped and tinned
CA121-5 Red 26 2.625" Black 26 4.25" stock Weld discs.
CA121-5-1 Red 26 2.625" Black 24 4.25" stock Weld discs.Housing is the longer version.
CA121-6 Red 26 6.00" Black 26 6.00" stock Weld discs.
CA121-7 Red 26 12.00" Black 26 12.00" special Blunt cut.
CA121-8 Red 26 3.00" Black 26 3.00" stock stripped and tinned
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca-0006.jpg CA-0006 Red 24 2.75" Black 24 5.50" Strip and tinned to 0.125"
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca-0020.jpg CA-0020 Red 22 xxx Black 22 xxx Blunt Cut
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
CA-0020-R.jpg CA-0020/R Red 22 xxx Black 22 xxx Blunt Cut
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca-0024.jpg CA-0024 Red 22 15.75 Black 22 15.75 Blunt Cut
CA-0024-1 Red 22 3.25 Black 22 3.25 Strip and tin to 0.22"
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
0024-2_small.jpg CA-0024-2 Red 22 6.25 Black 22 8 Strip and tin to 0.187"
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
ca-0047.jpg CA-0047 Red 22 8.00" Black 22 8.00" Blunt Cut
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
kh1015_small.jpg CA-0060 Red 22 8.00" Black 22 8.00" Blunt Cut
CA-0060-2 Red 22 16.00" Black 22 16.00" Blunt Cut
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
CA0060-1.jpg CA-0060-1 Red 22 8.00" Black 22 8.00" Blunt Cut
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
CA0777.jpg CA-0077 Red 22 10.00" Black 22 10.00" Blunt Cut
15.50"
Polarity S&S p/n Color Awg Length Color Awg Length Type Termination
CA0077.jpg CA-0077-2 Red 22 12.00" Black 22 12.00" Blunt Cut
CA-0077-1 Red 22 16.00" Black 22 15.50" Blunt Cut

Additional Connectors
ca003.jpg ca005.jpg ca-0006.jpg ca018.jpg ca0008a.jpg ca055.jpg
CA003 CA005 CA-0006 CA018 CA008A CA055

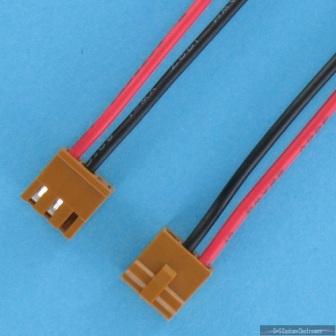

ca029.jpg 0014.jpg ca-0058.jpg ca066.jpg ca-0112.jpg ca-0102.jpg
CA029 CA-0058 CA066 CA-0112 CA-0102
ca-0187.jpg ca-0166.jpg CA-0088-2.jpg ca-0055.jpg ca-0057.jpg ca120-.jpg
CA-0187 CA-0166 CA-0088-2 CA-0055- CA-0057 CA120-
ca084a.jpg ca076a.jpg ca117.jpg ca014.jpg ca-0024.jpg ca051.jpg
CA084A CA076A-1 CA117 CA014 CA-0024 CA051
kh1015.jpg kh1016.jpg ca-0165.jpg ca111.jpg ca-0076.jpg ca-0047.jpg
CA-0060 CA-0077-2 CA-0165 CA111 CA-0076 CA-0047
ca011s.jpg ca011.jpg ca012s.jpg ca012.jpg ca-0096.jpg ca-0090.jpg
CA011S CA011 CA012S CA012 CA-0096 CA-0090

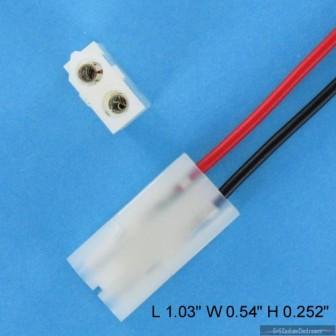

ca032.jpg ca032r.jpg ca-0000.jpg ca-0042.jpg ca058.jpg ca-0066.jpg
CA032B CA032R CA-0136 CA-0042-9 CA058 CA043 or CA-0066
ca023.jpg ca-0033.jpg ca-0043.jpg ca025.jpg ca-0012.jpg ca-0021.jpg
CA023 CA-0033 CA-0043 CA025 CA-0012-1 CA-0021

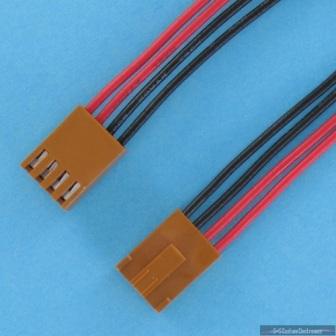

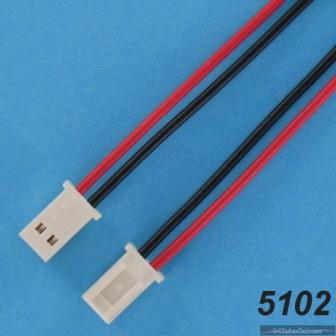

ca-0117.jpg ca-0065.jpg ca-0045.jpg ca038.jpg CA-0037-1.jpg ca-0025.jpg
CA-0117 CA-0065 CA-0045 CA038 CA-0037-1 CA-0025
ca024.jpg CA-024-2B.jpg CA038B-3A.JPG ca038b-4.jpg CA-0173-1.jpg ca-0069.jpg
CA024-1 CA024-2B CA038B-2A,3A CA038B-4,-2B,-3B CA-0173-1 CA-0069
3-829868-3.jpg ca017.jpg ca088.jpg ca044-1.jpg ca-0082.jpg ca-0083.jpg
C-3-829868-3 CA017 CA088 CA044-1 CA-0082 CA-0083
000.jpg ca----.jpg ca-0020.jpg CA-0020-R.jpg ca080.jpg ca-0056.jpg
CA-0169A CA-0168A CA-0020 CA-0020/R CA080 CA-0056
CA-0137-1.jpg ca000.jpg ca1211.jpg ca071.jpg ca057.jpg ca057-2a.jpg
CA-0137-1 CA096 CA121 CA071 CA057 CA057/2

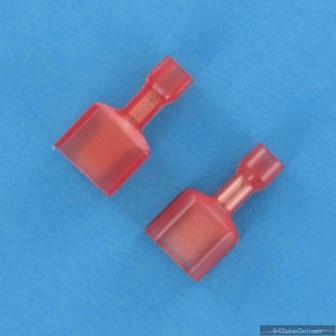

110-ins.jpg 187-1.jpg C-2-521104-2.jpg 187-2.jpg 187-un.jpg 250-un.jpg
